Protective lenses
Match by welding head model, lens size, and installation position.
← Laser Welding Machine
Welding Series
3-in-1 Handheld Laser Welding Machine
One compact platform for welding, surface cleaning, and light metal cutting—designed to simplify daily fabrication work.
Request a Quote
Technical Data
Configuration
Standard configuration and operating specifications for the FLM three-in-one laser welding system.
- Machine model
- FLM Series Laser Welding, Cleaning & Cutting System
- Laser power
- 1000W / 1500W / 2000W / 3000W (optional)
- Laser source
- Raycus / MAX
- Laser head
- ChaoQiang
- Control system
- SUP23T
- Laser wavelength
- 1064 nm
- Fiber length
- 10 m standard / 15 m maximum
- Welding speed range
- 0–120 mm/s
- Cooling chiller
- Industrial water chiller
- Working temperature
- 15–35 °C
- Recommended welding thickness
- 0.5–3 mm
- Packing size
- 1.35 × 0.78 × 1.25 m
- Gross weight
- 230 kg (1.5/2 kW) / 315 kg (3 kW)
- Working voltage
- 380V / 50Hz / three-phase
Configuration may vary by selected laser power and project requirements.
Welding Results
Application Samples
Sample results across aluminum profiles, stainless-steel tubes, galvanized sheet, T-joints, kitchen sinks, mixed-metal joints, surface cleaning, and handheld laser processing.
AluminumStainless SteelGalvanized SheetT-JointsSurface CleaningMetal Cutting

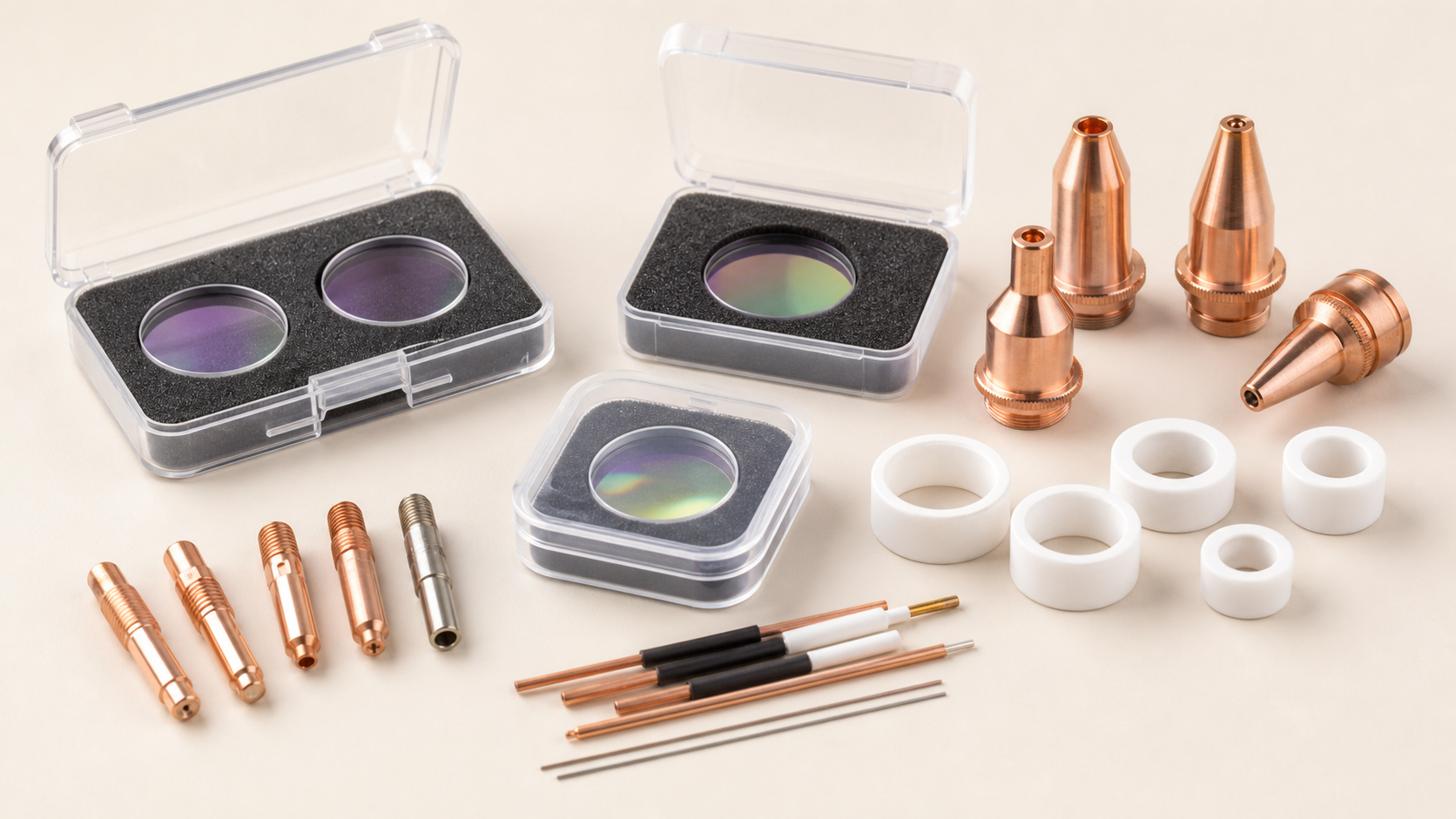

Spare parts & support
Keep your welding machine running with matched replacement parts.
Share your old-part photo, welding-head model, or original label. We confirm the replacement specification before quotation.
Welding nozzles & ceramic parts
Match by nozzle type, wire-feed use, thread, and welding head version.
Wire-feed & welding-head parts
Send a photo or original label for contact tips, liners, QBH-related parts, or head components.
Need the right configuration?
Tell us your material, thickness, and daily production needs.
